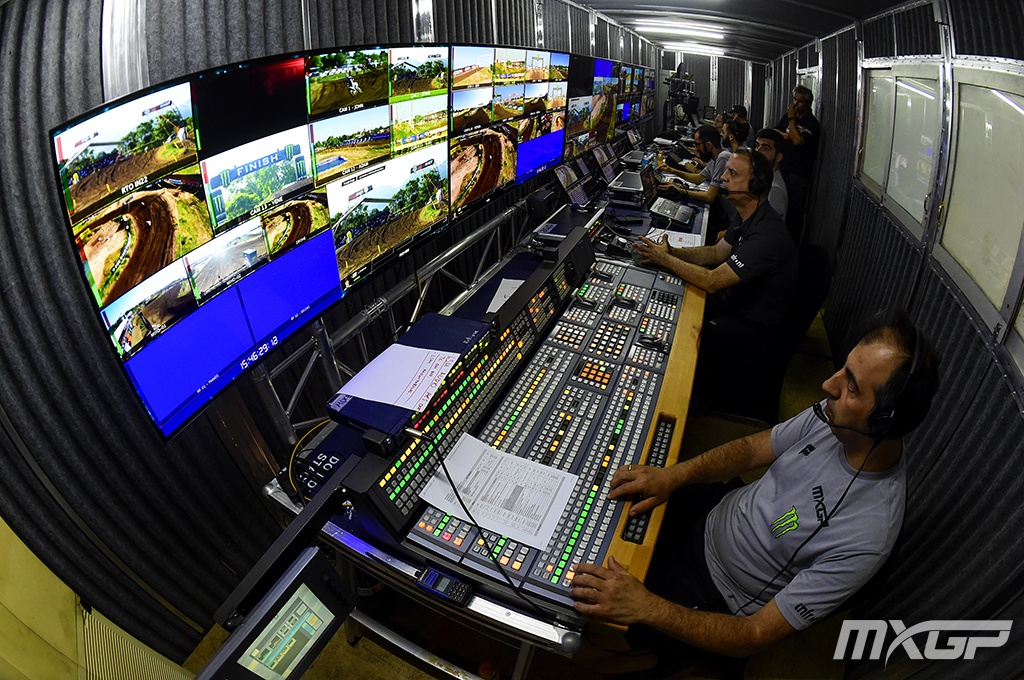

• SONY MVS-8000ASF with 2ME 32-buttons Panel with 4 Keys/ME
• SONY MVE-8000A 4× DME Channels P-in-P fully scalable
• BMD 2×ME Backup Mixer

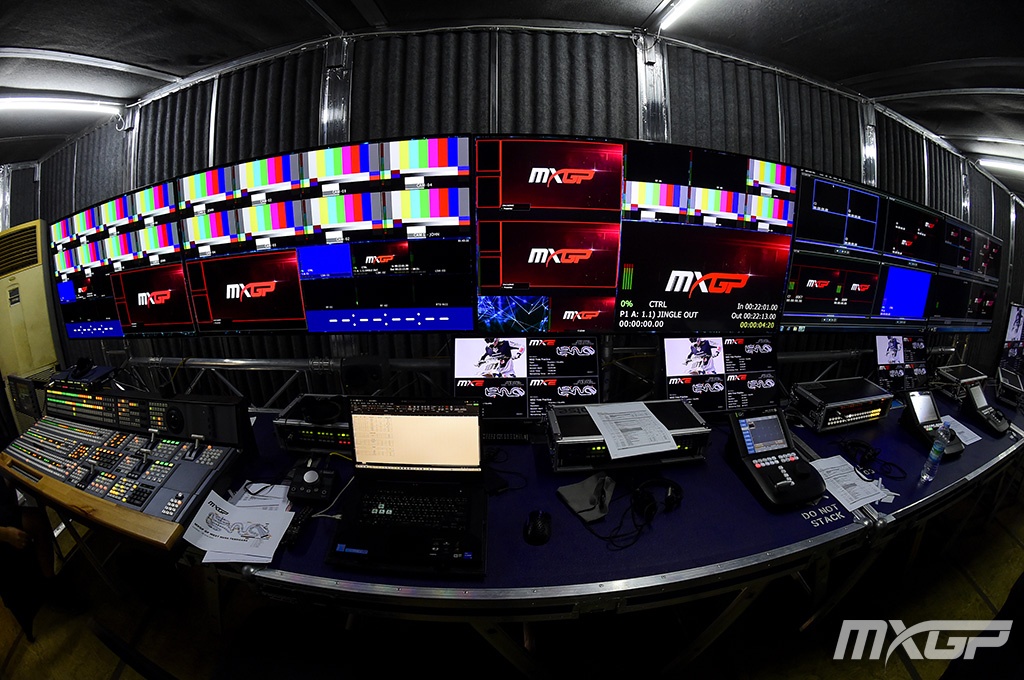

• Multiviewers Assignable by Router in All Areas
• HD-SDI 40×40 Video Router with Embedded Audio
• UP to 4× External FS-UP/DOWN/CROSS Converters
• HD CAMERAS:
  – Up to 12× GVG or SONY with Triax/Fisher or Fiber/Lemo
  – Up to 2× GVG HighSpeed 3G-Fiber Super Slow Motion channels Connectors LEMO 3K.93C
  – Up to 4000m Triax or Fiber cables available
  – Up to 2× HD WIRELESS GVG or SONY with Remote & Tally
  – Up to 2× HD Mini Channels on FIBER SMPTE
  – Large view finders 7inch LCD for the cameras
  – HD TELE Lenses (100×, 86×, 72×, 66× or according to specific needs of each event)
  – HD WIDE Angle Lenses (14×, 11× or according to specific needs of each event)

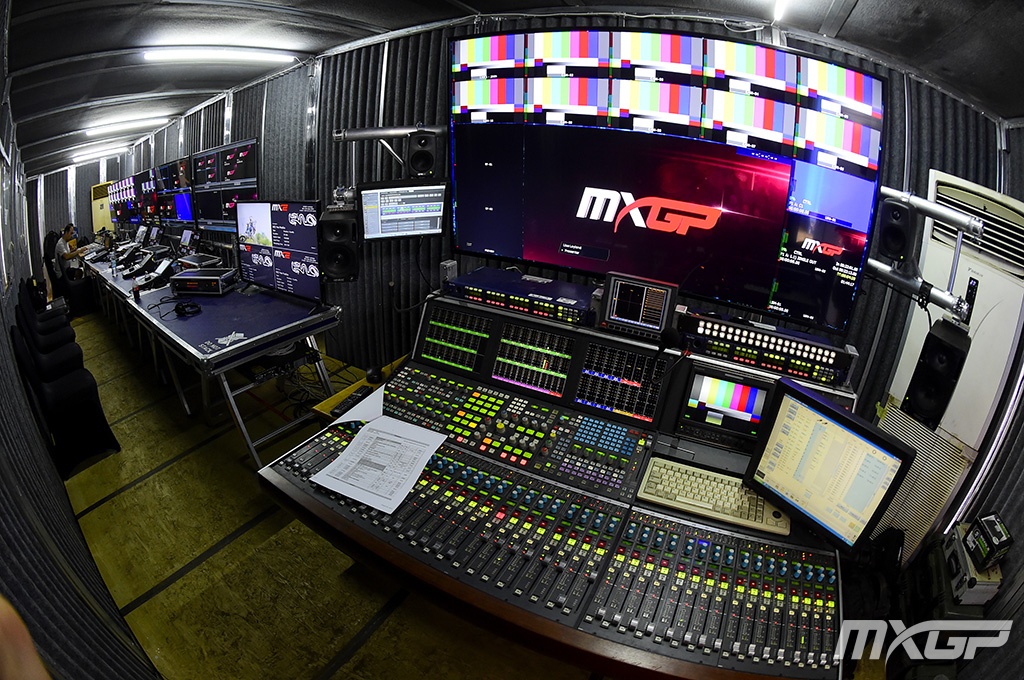

• LAWO mc²36 with 40 physical faders
• 32× AES/EBU inputs
• 32× Mic/Line inputs
• 32× AES/EBU outputs
• 32× Line outputs
• 24× Embedders/De-Embedders
• All kinds of Microphones (Long or Short Guns, Stick mics, Wireless)

• Clearcom Eclipse HX PICO 36 Ports
• 14× I-Series/ICS-1016 stations
• 2× 2-wire & 6× 4-wire for external communications
• 2× 4-wire for Wireless Intercom
• 2× AEQ ISDN Codecs & 2× AEQ PSTN Codecs
• 16×16 channels Walkie Talkie

• UP to 3× GVG K2/DYNO  (26× rec/3× play)
• Up to 3× SSD HD Recording Units

• 2× Dual Channel Graphics Generator
• The 2 Character Generators work either independently as different CG channels, either in parallel mode (Dual channel shadow Servers) for 100% On Air Redundancy

                     See related service page ›

• Up to 2× HD WIRELESS VISLINK Group
• Full Camera / Lens & TALLY controls by VIDEOSYS

                     See related service page ›
