OB-4 HD

UNIT

  • Length: 13.95 m
  • Width: 2.55 m – 4.50 m OPEN (Double Expanded)
  • Height: 3.95 m
  • Power requirements: Single 63A 3-Phase (3P+N+PE) inlet with UPS 27KVA
Microsoft Word - Έγγραφο1

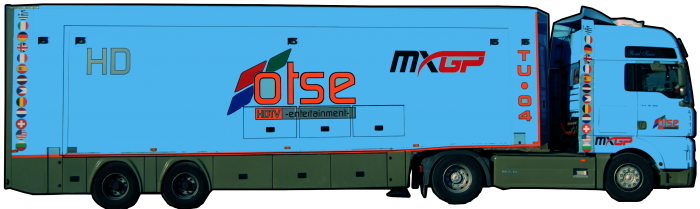

ob-4_NEW

EQUIPMENT

  • Sony MVS-8000A HD 4x ME switcher 4 Keys/ME with 32-buttons main panel
  • Sony MVE-8000A with 8x Channels DME
  • MIRANDA HD Multiviewers for PGM-PRW-Sources (Up to 80x13inch sources)
  • 15x 26 inch HD LEDs with in Production Area
  • 8x 24 inch HD LEDs for GFX & LSMs positions
  • 2x 32 inch & 4x 24 inch HD LED with Multiviewers in Audio and Vision Area
  • GRASS VALLEY HD-SDI 256×256 Video Router with Embedded Audio
  • UP to 16x External FS-UP/DOWN/CROSS Converters
  • HD CAMERAS:
    Up to 20 GVG LDK-8000 Elite 3G-Triax channels Connectors FISHER
    More than 8000m @ 11mm TRIAX cables available
    Up to 4 GVG LDK-8300 HighSpeed 3G-Fiber Super Slow Motion channels Connectors LEMO 3K.93C
    Up to 4 HD WIRELESS Grass Valley LDK-8000 Elite with Remote & Tally
    HD TELE Lenses (100x, 86x, 72x, 66x or according to specific needs of each event)
    HD WIDE Angle Lenses (14x, 11x or according to specific needs of each event)
  • CALREC OMEGA Bluefin Audio Mixer with 56 physical faders and 160 DSP Channels
  • 5.1 DOLBY-E and DIGITAL Surround Audio Processing
  • 96x AES/EBU inputs
  • 64x Mic/Line inputs
  • 96x AES/EBU outputs
  • 64x Line outputs
  • 24x Embedders/De-Embedders
  • All kinds of Microphones (Long or Short Guns, Stick mics, Wireless)
  • Matrix Digital Clearcom Compact 72×72
  • 14 stations inside the Main Unit
  • 6x 2-wire & 12x 4-wire for communications
  • 4x 4-wire for Wireless Intercom
  • 4x AEQ ISDN Codecs & 2x AEQ PSTN Codecs
  • 16x 16 channels Walkie Talkie
  • UP to 4 GVG K2-Summit 3G/DYNO or EVS XT3 LSMs 8-channel @ (8 rec/1 play or 6 rec/2 play)
  • Up to 3 HDCAM VTR’s Spaces
  • Up to 12 SSD HD Recording Units
  • Up to 8 File-Based-Ingest on PC – (H264, DNxHD, Apple ProRes, MJPG, MOV, AVI)
  • Up to 2 Edit-While-Ingest Channels on most popular editing platforms
  • Up to 3 Edit Spaces each with (Adobe Premiere, Final Cut Pro or AVID)
  • 2x Dual Channel Graphics Generators (4K/HD/SD)
  • The 2 Character Generators work either independently as different CG channels, either in parallel mode (Dual channel shadow Servers)for 100% On Air Redundancy
  • Each channel can contain up to 9,999 layers of content (with both fill & key/alpha)
  • Supported Resolutions:
    160p50/60, 2160p25/30, 1080p50/59,94, 1080i50/59,94, 720p50/60-NTSC/PAL

                     See related service page ›

  • Up to 4 HD WIRELESS VISLINK Group attached on Grass Valley LDK / LDX cameras
  • Full Camera / Lens & TALLY controls by VIDEOSYS
